Elementfogbruk

Information

Bemix Elementfogbruk is a pumpable expander mortar for jointing and subcasting of prefabricated
concrete elements.

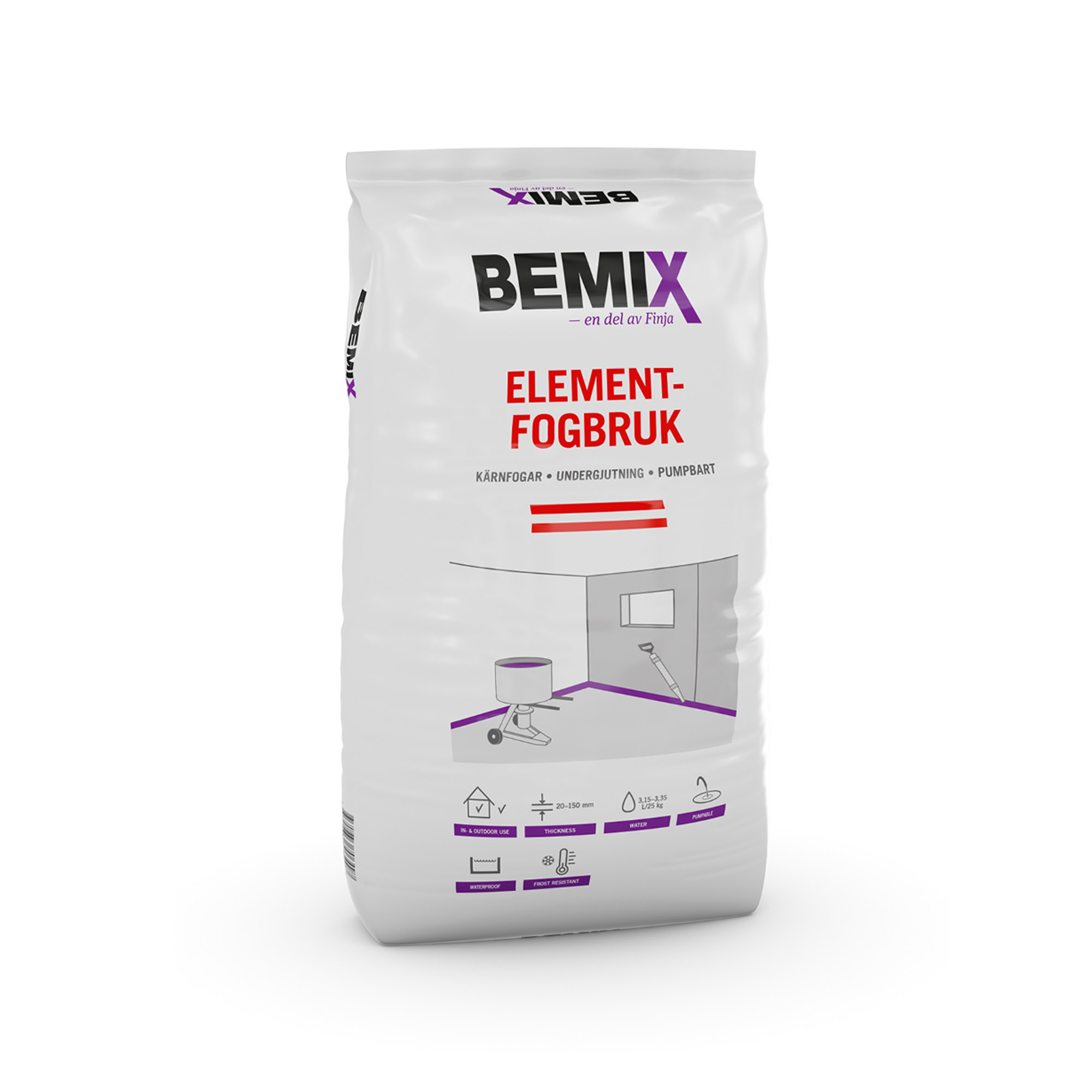

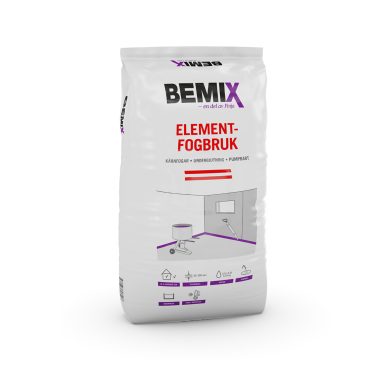

Bemix Elementfogbruk is now available in a new smart plastic bag. Sustainability is extended up to 24 months compared to the previous 12. Learn more about the new plastic bags here.



Product data

Article number:

1100650

1100190

Weight

25 kg á 40 bags/palette

1000 kg

Product category

Expanding mortar

Expanding mortar

Function

Jointing, Pumpable Jointing, Pumpable

Processable

20 minutes 20 minutes

Compression strength

50 MPa 50 MPa

Layer thickness

20-150 mm 20-150 mm

Consumption

2 kg/m2/mm 2 kg/m2/mm

Water quantity per 25 kg

3,15 – 3,35 litres

3,15 – 3,35 litres

1 kg dry mortar = finished concrete

0,5 litres 0,5 litres

Waterproof

Instructions

Preparation:

The concrete substrate must be clean and free of dust, damaged concrete, grease or other contaminants that may impair adhesion. Substrate with a roughened and raw surface with closely spaced irregularities provide better adhesion. Clean the substrate carefully and if possible pre-water 24 hours before casting. Remove free water just before casting.

Application advice:

The mortar is applied manually and carefully packed or can also be pumped with a purpose-designed concrete pump. Ensure that joints and underpourings are always completely filled so as to avoid cavities.

Mixing:

Mixing is done mechanically for approximately 5 minutes in a slow-action mixer, such as a flat or free-fall mixer. Smaller quantities can be mixed with a mixer attachment. The concrete mix should have a temperature of approximately 20°C. Compensate cold dry material with warm water and vice versa.

After treatment:

Semi-hardened material can be adjusted with a trowel. Free and unprotected surfaces are protected immediately after casting so that shrinkage and dehydration cracks do not occur. After casting, the surface can be moisture-cured with a thin, light mist of water, but that cannot mechanically damage the mortar. At air temperatures above 5°C, curing may take place with remaining form, covering or supply of water and may last the entire first week. As soon as the surface hardens, it can be watered and covered. At minus degrees, use Bemix Elementfogbruk Winter or Elementfogbruk FF.
